ConnectionString Property

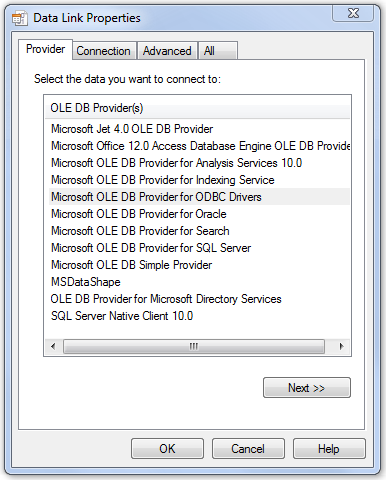

Provider Tab

Select the data you want to connect to from the list provided. For more information on the different OLE DB providers click the Help button on the Data Link Properties dialog window.

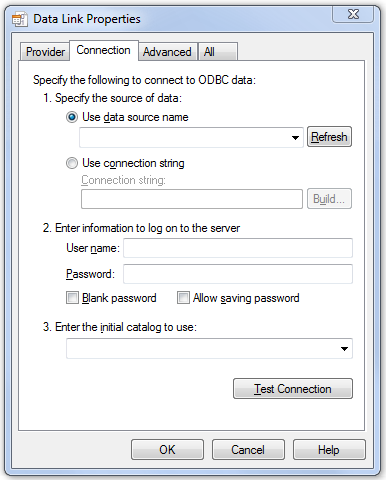

Connection Tab

Use the Connection tab to specify how to connect to ODBC data.

The Connection tab is provider-specific and displays only the connection properties that are required by the Microsoft OLE DB Provider for ODBC. For more information of the different options on this tab click the Help button in the bottom right corner of the dialog window.

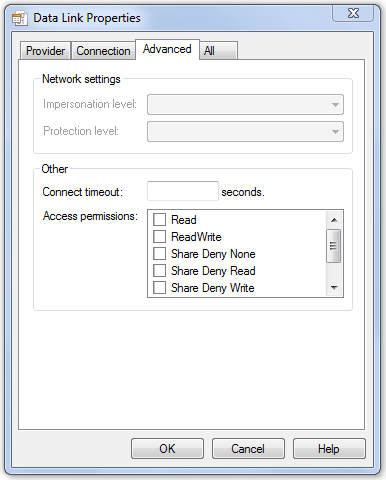

Advanced Tab

Use the Advanced tab to view and set additional initialization properties for your data.

The Advanced tab of the Data Link Properties dialog box is provider-specific and displays only the initialization properties required by the selected OLE DB provider. For more information about advanced initialization properties, click the Help button in the bottom right corner of the dialog window.

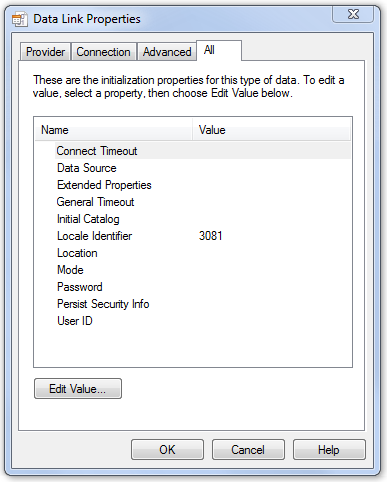

All Tab

Use the All tab to view and edit all OLE DB initialization properties available for your OLE DB provider. Properties can vary depending on the OLE DB provider you are using.

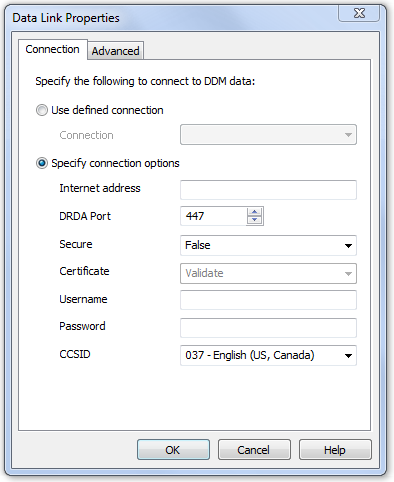

Connection Tab

Specify the details necessary to connect to the DDM server. This tab provides you with two options for connecting:

1. A pre-established DDM connection, OR
2. A full connection definition specifying the server and all the relevant connection properties.

Use defined connection - select this option to specify a pre-established host connection definition from the drop down list. Refer to Connections for help on how to create a host connection using the Connection editor.

Specify connection options - select this option if you would like to define the connection manually.

• Internet Address - The Internet address of the server you are connecting to.
• DRDA Port - The port number of the DRDA server on the host.
• Secure - Encrypt the connection to the server using SSL. Set to True if the server you are connecting to is a secure server.
• Certificate (only enabled if a secure connection is specified) - Specifies how certificates are validated for secure connections. Select Ignore if you do not want the certificate sent from the host to be checked for validity. Select Validate if you only want to connect to the server if the server certificate can be validated. Select Validate and Ask to check for validity and display the certificate details to the user before continuing.
• Username - The username to use when signing on to the DRDA erver.
• Password - Enter the required password to sign on to the DRDA server.
• CCSID - Enter a host code character set identifier from the drop down list, if required. This value is used to transcode between the host character set and the Windows character set.

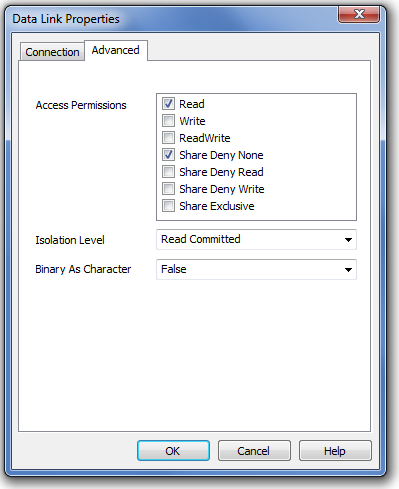

Advanced Tab

Use the Advanced tab to view and set the following initialization properties for your data:

Access Permissions - Specifies the access permissions that will be applied to the data connection. Access permissions apply to host file locks and do not apply to record locks. Use a combination of one or more of the following values:

• Read - Open recordsets on the connection with read-only permissions
• Write - Open recordsets on the connection with write-only permissions
• ReadWrite - Open recordsets on the connection with read/write permissions
• ShareDenyNone - Allows others to open shared recordsets with any permissions. Neither read nor write access will be denied.
• ShareDenyRead - Prevents others from opening a shared recordset with read permissions.
• ShareDenyWrite - Prevents others from opening a shared recordset with write permissions.
• ShareExclusive - Prevents others from opening a shared recordset.

This argument is only used for database connections.

Isolation level - The transaction isolation level, or commit lock level, for the connection. Use one of the following values:

• None - There is no commitment control for the connection.
• ReadUncommitted - Every record read for update is locked. If a record is updated, added, or deleted, that record remains locked until the transaction is committed or rolled back. Records that are accessed for update but are released without being updated are unlocked. Corresponds to IBM commit lock level *CHG.
• ReadCommitted - Every record accessed is locked. Records that are not updated or deleted are locked only until a different record is accessed. Records that are updated, added, or deleted are locked until the transaction is committed or rolled back. Corresponds to IBM commit lock level *CS.
• RepeatableRead - Every record accessed is locked until the transaction is committed or rolled back. Corresponds to IBM commit lock level *ALL.

This argument is only used for database connections.

Binary as Character - Process binary fields (CCSID of 65535) as character data type fields. Can be set to True or False. This argument is only used for database connections.
