CreateReadOnlyControls Property

Specifies whether the recognition engine should create read-only equivalent controls where identified on the dynamically created form.

object.CreateReadOnlyControls = [boolean]

Where object is an object expression that evaluates to one of the controls in the Applies To list, and boolean is a boolean expression that evaluates to either True or False, as described in Settings.

Client support

   Newlook Smartclient

   Newlook Server

Use

Usually, read-only (or protected) fields render as labels in the GUI form. However there may be times when you want to render them as read-only versions of the equivalent input controls.

For example, let's say you have an Edit Customer Details screen in your application, where a users can update various customer fields. Once changes have been made and the screen is sent back to the host, a confirmation screen is sent back. The fields that were previously entry-capable are now protected. Usually these protected fields would be generated as labels on the form. However it is possible to generated those fields as read-only versions of the input fields used in the edit screen.

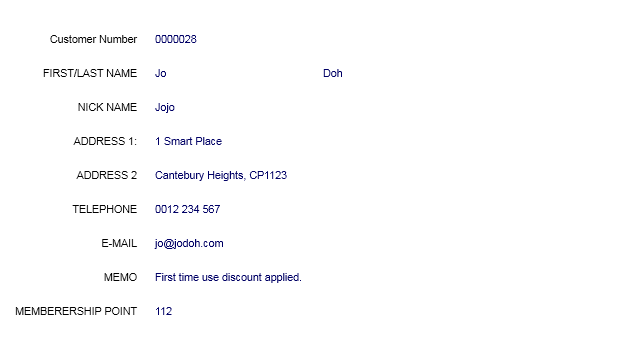

Figure 1. Protected fields displaying as labels (default display)

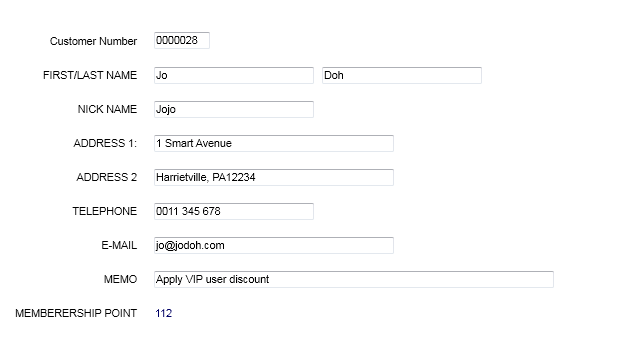

Figure 2. Protected fields displaying as read-only text boxes.



To display read only equivalents in your form the following conditions must be met:

• The form's CreateReadOnlyControls property must be True.
• The override you create must apply to both screens and the protected fields must be in the same position as their entry-capable equivalents.
• Each field to be displayed as a read-only entry field must be manually categorized with the relevant input category in Identify.

This property can be used to create read-only versions of check boxes, option buttons, text boxes or combo boxes.

NOTE!

You can set this property globally for all forms in your project via Rules | General Rules in the Advanced Display Options section.

Settings

Setting	Description
True	Protected fields that have been manually identified with an entry capable category type in Identify will generated as read-only controls.
False	Protected fields will generate as labels.

See Also

Advanced Recognition Rules

Applies To

Form object

---
